Building a Simple Multi-Band Antenna: The Endfed Halfwave

In the world of amateur radio, creating your own antennas can be a rewarding and enjoyable experience. This guide will walk you through the process of building a simple yet effective multi-band antenna, specifically an endfed halfwave antenna. It’s a great project for both beginners and seasoned hams looking to experiment with home construction.

Why Build Your Own Antenna?

Many enthusiasts opt to purchase ready-made antennas, which are often rugged and reliable. However, building your own antenna allows for customization and can be a fun learning experience. Plus, it can save you money. With just a few tools and materials, you can create an antenna that meets your specific needs.

Materials You Will Need

To construct this endfed halfwave antenna, you’ll need a few essential components:

  • Ferrite Core: A 240-43 ferrite core is recommended. It's readily available and can handle up to 100 watts. You can expect to pay around £6 to £8 for it.
  • Tinned Copper Wire: A wire gauge of approximately 16 AWG is ideal. This wire should be stiff enough to hold its shape when wound.
  • Capacitor: A 100 pF capacitor rated at 1 kV is necessary. If you can’t find one, you can use two 220 pF capacitors in series.
  • Antenna Wire: You will need about 20 meters of conductive wire, preferably PVC covered, to serve as the antenna itself.
  • Miscellaneous Tools: A soldering iron, wire cutters, and possibly some electrical connectors or joining blocks.

Understanding the Antenna Design

The endfed halfwave antenna functions similarly to a dipole antenna but without a break in the middle. It is effectively a half wavelength long on the 40m band, which translates to about 20m in length. This design provides a high impedance on various harmonics, making it suitable for multiple bands including 40m, 20m, 15m, and 10m.

Transformer Design

To connect the antenna to your transceiver, you will need a transformer. The simplest option is a 49:1 unun (unbalanced to unbalanced transformer). This transformer can be constructed on the ferrite core, simplifying the process significantly.

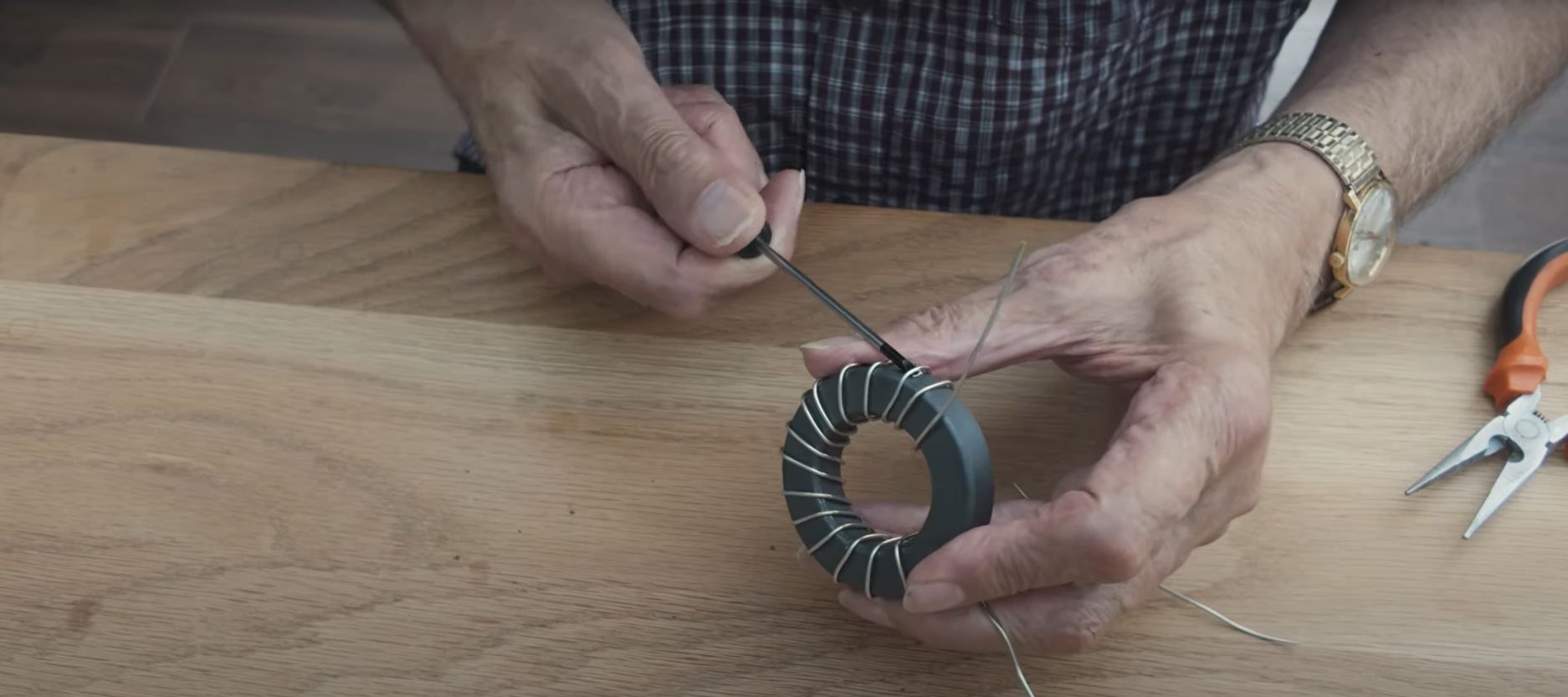

Winding the Coil

Winding the coil on the ferrite core is straightforward. Start by measuring out a piece of wire. You will need approximately a meter of wire for 14 turns on the core. Secure the wire tightly around the core, ensuring it remains in place without the need for additional fasteners.

Steps to Wind the Coil:

  1. Begin winding the wire around the ferrite core, counting each turn carefully.
  2. Once you have completed the turns, ensure the wire is secure and cut any excess.
  3. Connect the wire to the appropriate terminals on the transformer for input and output.

Tuning the Antenna

Once the antenna is assembled, you will need to tune it for optimal performance. Start with a length of around 20.4 meters (67 feet) of wire for the antenna. This length may need adjusting, so be prepared to trim the wire gradually.

Checking SWR

To ensure the antenna resonates correctly, you will want to check the Standing Wave Ratio (SWR) across the bands:

  • Use an SWR meter to check the resonance on the 40m band, aiming for a point around 7.075 MHz.
  • If the lowest point is outside the desired range, trim the antenna length slightly and re-test.
  • Check the SWR on the harmonics to ensure they are also within acceptable limits.

Common Myths and Tips

When building antennas, you may encounter various myths and misconceptions. Here are a few clarifications:

  • Counterpoise Requirement: Contrary to popular belief, you do not need a counterpoise to make this antenna work effectively. The coaxial cable itself often suffices.
  • Impedance Matching: While the transformer is designed for a 49:1 ratio, variations in impedance will not significantly affect performance. The antenna will still work effectively across multiple bands.
  • Capacitor Usage: Adding a capacitor improves the HF performance of the unun, but it’s not critical to the antenna’s basic function.

Final Thoughts

Building your own endfed halfwave antenna can be a gratifying project that enhances your amateur radio experience. With a few materials and some basic tools, you can create a versatile antenna that operates across several bands. Remember to experiment with lengths and tuning to achieve the best performance for your specific setup.

Thank you for taking the time to explore this antenna-building project. Your engagement supports the community of amateur radio enthusiasts, and I hope this guide inspires you to dive into home construction and experimentation!
