Welcome to a deep dive into the Comet CAT-10 Antenna Matching Unit (ATU). This compact device is designed specifically for QRP enthusiasts, providing an impressive matching capability across a range of frequencies. Let’s explore its features, functionality, and overall performance.
Introduction to Antenna Matching Units
Antenna matching units play a crucial role in ham radio operations. They ensure that the impedance of the antenna matches that of the transmitter, optimising performance and reducing signal loss. While many of us are familiar with popular brands like MFJ, the introduction of the Comet CAT-10 from Japan brings new options to the table.
Overview of the Comet CAT-10
The Comet CAT-10 is a compact and lightweight antenna tuner, rated for 10 watts. It is designed for use on multiple bands from 80 meters to 6 meters, making it an excellent choice for both portable and home station setups. Its sturdy design and high-quality components highlight Comet's commitment to performance and durability.
Physical Characteristics
The CAT-10 has a sleek off-white finish and is surprisingly compact given its capabilities. It features:
- Three tuning controls instead of the usual two, which allows for more precise adjustments.
- SO239 connectors for input and output, along with connections for earth and an end-fed wire.
These features make it versatile and user-friendly, catering to a variety of operational needs.
Internal Components and Construction
Curious about what's inside? Upon opening the CAT-10, you'll find well-designed internal components. The main capacitors are air-spaced, capable of handling the rated power with ease. The construction is clean and clinically laid out, with components assembled to a high standard.
Understanding the Tuning Process
To adjust the Comet CAT-10 for optimal performance, follow these simple steps:
- Select the desired band using the band switch.
- Adjust tuning control one for the best VSWR (Voltage Standing Wave Ratio).
- Fine-tune with control two, then use control three for ultimate matching.
It’s a straightforward process, but it may require some back-and-forth adjustments to achieve the best match.
Image: Internals
Circuit Design and Functionality

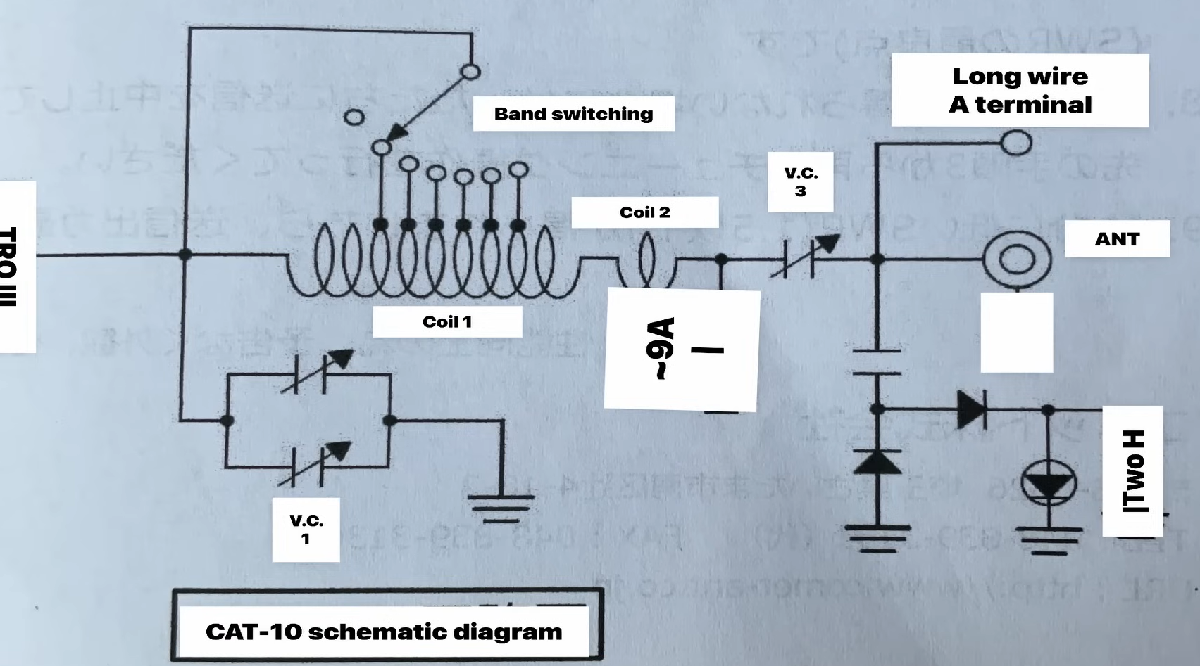

The underlying circuit design of the CAT-10 is a PI network. This design is known for its effectiveness in impedance matching:
- VCC1 serves as the basic tuning control.
- VCC2 acts as the loading control, while VCC3, a series capacitor, broadens the range of impedance matching.
Image: Circuit Diagram
An LED indicator provides feedback on the matching performance, illuminating more brightly with better matches. While this is a basic indicator, it’s essential for users without a dedicated VSWR meter.
Performance Testing and Real-World Use
Testing the CAT-10 with a 5-watt IC705 transceiver showcased its capabilities. Following the provided settings led to successful tuning across various bands:
- Achieved a low VSWR on 40 meters with a half-size G5RV antenna.
- Successfully matched an 80-meter setup, proving its adaptability.
- Even managed to tune a 20-meter mobile antenna on 17 meters, demonstrating its wide range of matching capabilities.
Image: Testing with ICOM IC-705 and Moonraker SWR meter
The CAT-10 performed remarkably well, even when faced with challenging conditions and antennas.
Ideal Use Cases for the Comet CAT-10
This ATU excels in several environments:
- Portable Operations: Its compact size makes it perfect for field use.
- Home Stations: Suitable for various HF operations.
- Versatile Antenna Matching: Can match a variety of antennas, including end-fed wires.
Whether you're an avid QRP operator or just starting, the CAT-10 provides reliable performance across multiple scenarios.
Conclusion: Why Choose the Comet CAT-10?
The Comet CAT-10 ATU is an impressive addition to the QRP antenna matching unit market. Its robust construction, ease of use, and broad frequency coverage make it a standout choice for amateur radio enthusiasts. If you're looking for a reliable and effective antenna matching solution, the CAT-10 might just be what you need.
As we wrap up this exploration of the Comet CAT-10, it’s clear that this device offers a lot to both new and seasoned operators. Its capabilities in matching various antennas and handling different bands highlight its versatility. For those engaged in the world of ham radio, the CAT-10 is certainly worth considering.
Thank you for joining me in this detailed look at the Comet CAT-10 ATU. Happy operating!
