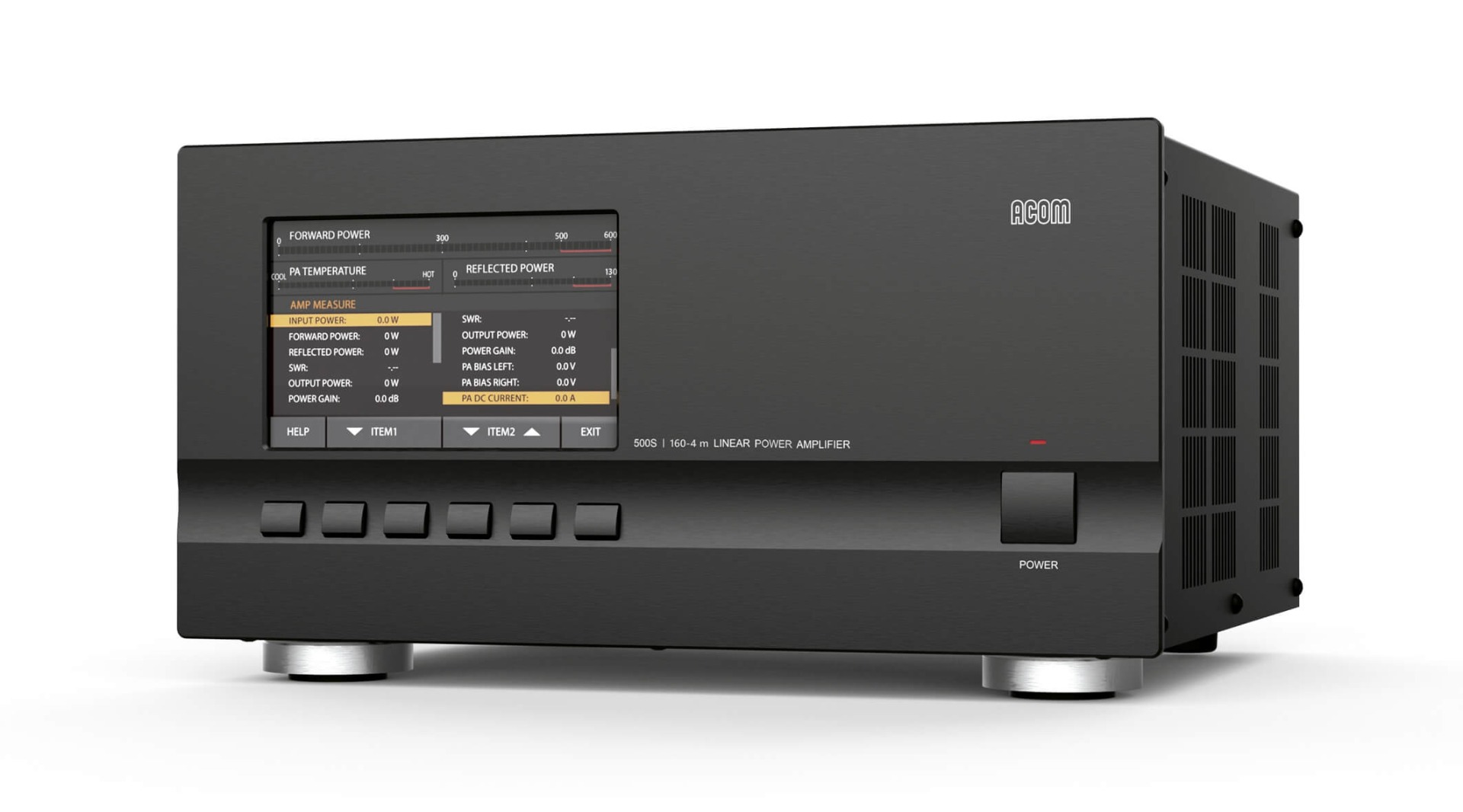

The ACOM 500S is a state-of-the art linear power amplifier operating information is shown on a multi-functional, high-resolution color display. ACOM 500S can be controlled either by the six front-panel buttons or remotely.
The overall operation of ACOM 500S is extremely simplified: the screen menus are intuitive and easy to follow, and no special skill is required from the operator when changing frequency bands.
When connected to a transceiver with CAT capability, the amplifier will track the operating frequency and will change bands accordingly. Even if not CAT connected, the amplifier monitors the input signal frequency through the built-in frequency counter and automatically switches bands.
All amplifier status indications are explained via detailed text displayed on the 5" high-resolution color display (108x65 mm, 800x480 pixels, and 24-bit color).
Compatible with all transceiver models available on the market - does not need any special signals: "ground on transmit" and less than 25 W of RF drive power is sufficient.
The ACOM 500S amplifier uses a rugged LDMOS transistor.
Takes care of itself via continuously working protection circuits in all modes.
Remotely controlled by RS-232 port and via the Internet by the ACOM eBox Ethernet Remote Control device (function in development).
Detailed data about each of the last hard-fault protection trips is stored in the amplifier's non-volatile memory.
Convenient for expeditions and field operation due to the extremely compact and lightweight construction and the built-in switching-mode power supply (SMPS). SMPS operates with extended mains voltage range of 100-240 VAC, with no internal switch over. The consumed current is purely sinusoidal, Power Factor Corrected (PFC) and inrush limited. This makes the operation of unstable mains and generators easy and trouble-free.
Perfect electromagnetic compatibility (EMC) with both highly sensitive devices and the powerful devices in the radio station (receivers, computers, other amplifiers) exceeds the standard EMC requirements due to the use of built-in radio-frequency filters.
Specification
