Chameleon Cha F-Loop 3.0 TOTAL (80-10M) Inc Booster Kit

SKU :
11-7024x
Category:
Amateur Antennas
Manufacturer:
Chameleon

Chameleon Cha F-Loop 3.0 TOTAL (80-10M) Inc Booster Kit

SKU :
11-7024x

Chameleon Cha F-Loop 3.0 TOTAL (80-10M) Inc Booster Kit

In stock
Out of stock
SKU
11-7024x
Special Price £550.00 Regular Price £649.95
About Chameleon Cha F-Loop 3.0 TOTAL (80-10M) Inc Booster Kit

The CHA F-LOOP 3.0 was designed with portability, ease of use simplicity, ruggedness, and high performance in mind. Unlike any other similar antennas on the market, theCHA F-LOOP 3.0 is made with premium materials that are precisely manufactured and assembled in the USA

This is an exciting new product from Chameleon Antenna. Easily deployable HF magnetic loop antennas, also called small transmitting loops, have been routinely used for many years in military, diplomatic, and shipboard HF communication links, where robust and reliable general coverage radio communication is a necessity.

These antennas have only recently become commercially available for amateur radio. The real practical advantage of the small loop, compared to a short vertical whip tuned against earth or a full-sized vertical antenna, is the loop’s freedom from dependence on a ground plane and earth for achieving efficient operation.

In comparison, the bottom of a vertically oriented loop does not need to be more than a loop diameter above ground. There is no significant improvement in sky wave propagation performance when a small loop is installed high; all that matters is the loop is substantially clear of objects in the immediate area and oriented towards the desired direction of radiation.

Field trials of the CHA F-LOOP 3.0 demonstrated that an indoor magnetic loop antenna was only around one to two S-units lower, on both transmit and receive, than outdoor full size quarter wave vertical antenna. Remarkable for an antenna that is only less than three foot in diameter.

The magnetic loop is different from typical antennas because it emphasizes the magnetic part of the radio wave (H field) rather than the electric part (E field) of the radio wave. It also has a high Q resonance of around 17KHz on 40 meters, providing immunity from interference outside the bandpass.

The CHA F-LOOP 3.0 Antenna was designed with weight, portability, versatility, and cost in mind and is ideal for RV/camping, hotels, apartments, condominiums, homeowner’s associations, deed restrictions and CCRs (Covenants, Conditions & Restrictions), Shortwave Listening (SWL) and other places where it is not feasible to erect a multi-band wire or vertical antenna.

The crimp PL-259 connectors that we're using with all our RG-58 are UHF-7604L connectors from PAN-PACIFIC. They're the best and the leader in the industry.

  • There is no need for soldering; therefore, installation time is reduced.
  • It takes an experienced technician about 15 seconds to install a crimp-crimp connector.This is very important in today's cabling market where time is of the essence and fewer technicians are being asked to maintain more and more equipment. Digital video, computer and network cabling is almost universally crimped today.
  • Crimped connections, done correctly, can be superior to soldered connections.
  • A good crimped connection deforms the metal sufficiently past the yield point, but not too much, so that the "spring back" keeps the connection secure, even under thermal cycling (the coefficient of expansion of the two metals might be different) and vibration.
  • A good crimp connection is gas tight and won't wick: it is sometimes referred to as a "cold weld".
  • Like the solder method, it can be used on solid or stranded conductors, and provides a good mechanical and electrical connection.

Specification

  • 3.5 MHz to 29.7 MHz (80 - 10-meter ham bands)
  • Power handling: 10W CW or 25W SSB
  • Proprietary solderless aluminium coupling loop. This coupling loop design can be used with any types of coax cable feed-lines. The antenna tuning will remain stable, consistent and will prevent SWR fluctuations due to usual coupling loop deformation.
  • The three sections collapsible portable mast allows easy storage, fast deployment, and ease of use in all conditions. No need to play with multiple tubular PVC sections to assemble the antenna.
  • The bottom of the telescopic mast is equipped with a stainless steel 3/8-24 threaded hole for easy tripod installation on the tuning box 3/8-24 screw.
  • The 12’ RG-58 with integrated RFI choke feed-line decouples the coupling loop from the radio which is essential to prevent SWR fluctuation while rotating the antenna or moving the coax cable around.
  • Our custom-made capacitors which are equipped with a 6:1 reducer, offer a smooth and consistent tuning while providing the highest efficient performance on the market.
  • Larger Delrin tuning knob for smoother tuning and operation.
  • The base of the tuning unit is equipped with an aluminium anodized base plate. That base plate can be placed directly on a flat surface or can be mounted on a tripod (14-20 thread or 3/8 through hole for CHA JAWMOUNT installation).

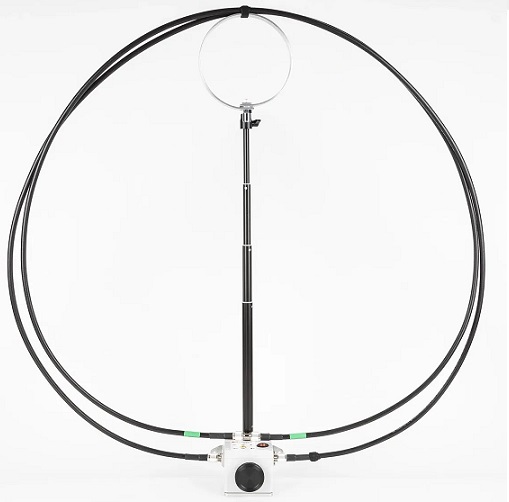

The CHA F-LOOP 3.0 TOTAL antenna system consists of

  • CHA F-LOOP 3.0 tuning box
  • LMR-400 coax cable radiator (146" LONG)(15M to 40M)
  • Proprietary coupling loop 8"
  • 2 X LMR-400 coax cable radiators (10M - 80M)
  • Dual Female connector
  • 12’ RG-59 Coax with integrated RFI choke feed-line
  • Shoulder Bag
  • Proprietary coupling loop 6.5"
  • Telescopic Mast
  • 1User guide
