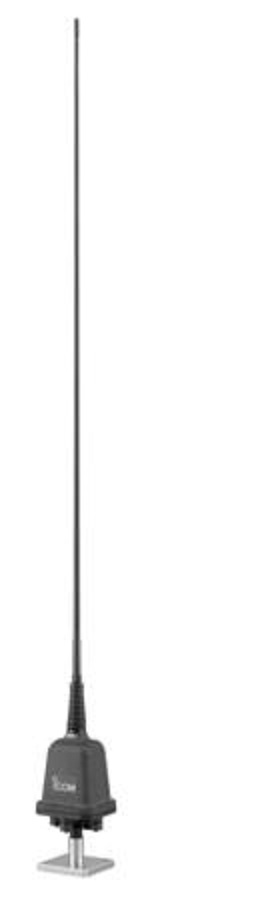

ICOM AH-740 - Automatic Tuning Antenna

ICOM AH-740 Mobile HF Auto-Tune Antennas provide near-instantaneous tuning across a 2.5 to 30 megahertz range. Their self-contained multiband antenna tuner creates a unified wide-range mobile antenna of exceptional capability. Designed to facilitate mobile HF communications for commercial and military users around the world they are both rugged and reliable.

Key Features/Specifications:

• Covers 2.5-30MHz (amateur band). OPC-2321 is required.
• Relay-driven compact automatic tuning antenna
• Compact and lightweight (3.5kg)
• 150mS typical high speed tuning (while memory tuning)
• Low power consumption (0.4A typical)
• Electronic automatic tuning antenna (NOT a screwdriver)
• Lightweight (7.7 lbs.)
• 150ms typical high-speed tuning while memory tuning
• Low power consumption (0.4A typical)
• Operating temperature: minus 40 degrees F to plus 158 degrees F
• Supplied accessories: Control cable and coaxial cable 19.7 ft. each

The following items are required for installation, but are NOT supplied with the AH-740.

• Antenna mount
• Mounting base
• Rubber sealing tape
• Electrical tape
