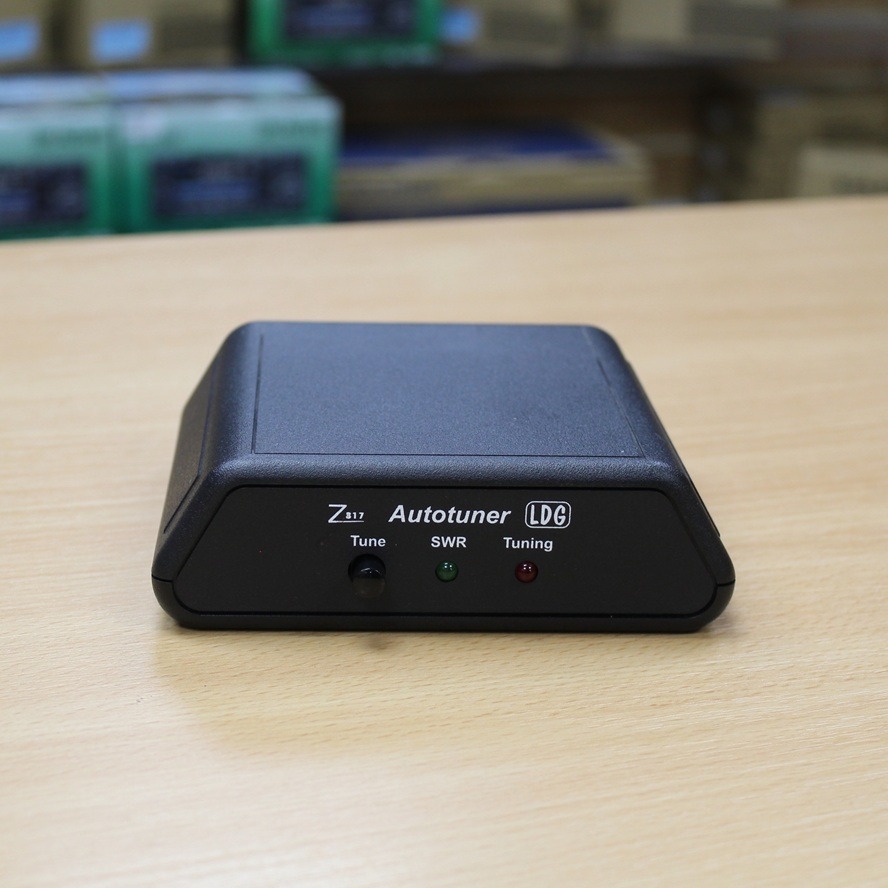

SOLD! USED LDG Z-817 - Automatic Antenna Tuner

USED LDG-817 ANTENNA TUNER, BOXED WITH ALL LEADS AND MANUAL, 6 Months warranty

The LDG Z-817 is an automatic tuner intended for use with the Yaesu FT-817/818 QRP transceiver. It interfaces with the transceiver through its CAT port, providing full control of the tuning cycle.

Like most LDG tuners it operates automatically, beginning a tuning cycle whenever the user presses the tune button on the tuner. When tuning near a previously used frequency it will recall the settings for tuning. You can also start a tuning cycle manually whenever necessary.

Specification

• RF Power 0.1 to 20 watts SSB, CW and digital modes.
• Latching relays for ultra low power consumption
• Battery operated 4 x 1.5V Alkaline AA (not included)
• Built-in CAT port interface. CAT thru port for computer connection.
• 2000 memories when used with FT-817 interface (200 memories for other radios)
• 1.8 to 54 MHz coverage (continuous coverage for MARS)
• Tunes 6 to 600 ohms (about 10:1 SWR range). 16 to 150 on 6M (about 3:1)
• SO-239 in and out connections for dipoles, verticals, beams, G5RV, OCF, Cobra, etc
• Dimensions: L-5.1 x W-4.7 x H-1.7 inches.
• Includes 1ft CAT cable
