RAMESY STE2200F2 - PORTABLE FORENSIC RF SHIELDED TEST ENCLOSURE

SKU :
99-143

RAMESY STE2200F2 - PORTABLE FORENSIC RF SHIELDED TEST ENCLOSURE

Pre-order now and we will contact you with a delivery date
SKU
99-143
£525.00
About RAMESY STE2200F2 - PORTABLE FORENSIC RF SHIELDED TEST ENCLOSURE

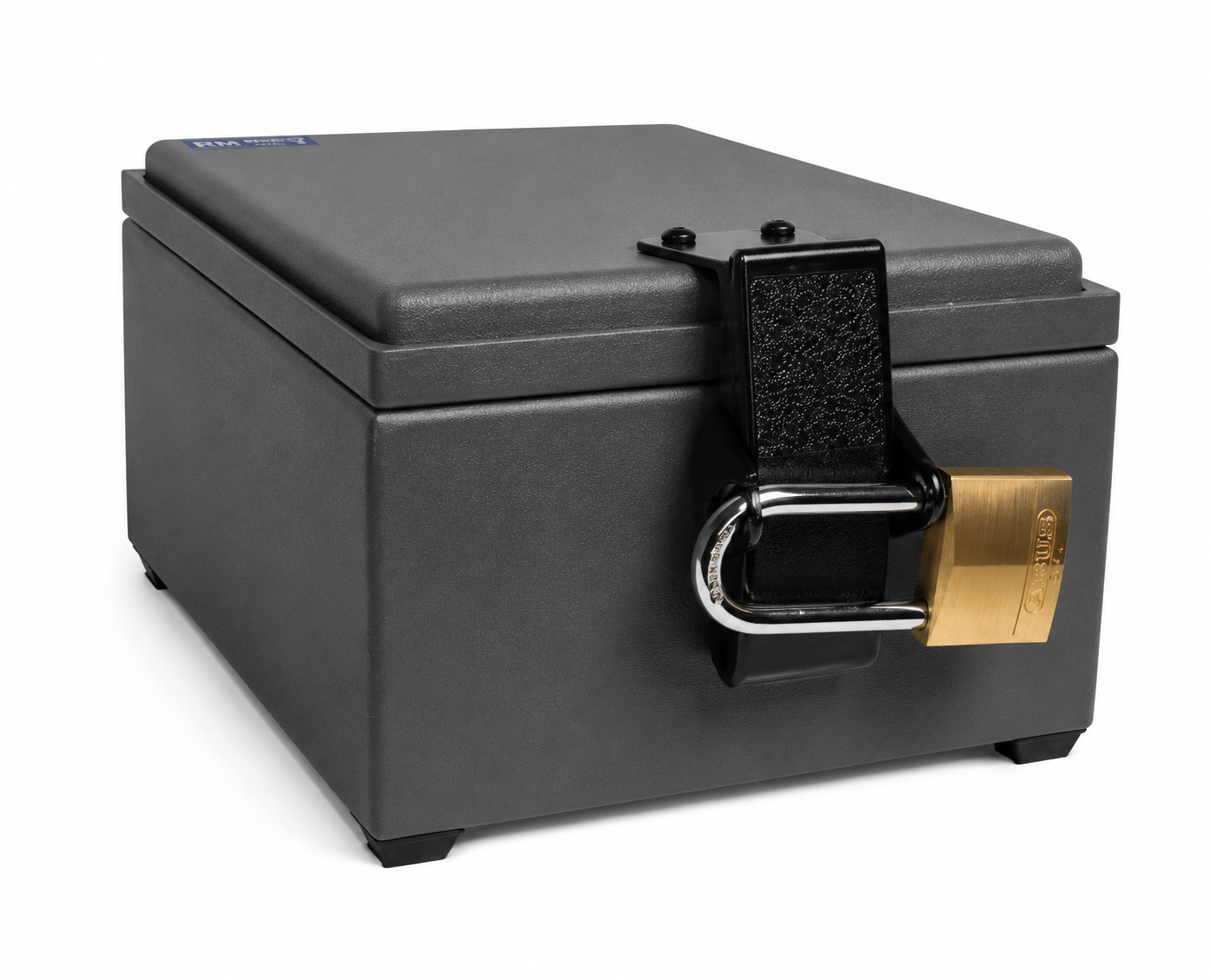

STE2200F2 FORENSIC RF SHIELDED TEST ENCLOSURE

(NO OPTIONS INCLUDED, Fully customizable to your requirements )

  • The perfect isolation chamber for the effective transport of wireless devices
  • Designed specifically for forensics applications
  • Provides maximum isolation from all UMTS mobile device bands
  • Provides maximum isolation from WiFi signal sources including 802.11a/b/g/n/ac
  • Features the latest GEN-2 custom RF gasket system
  • Features the latest GEN-2 custom RF absorbent and reflective foam liner
  • Easy release latch, with convenient steady-hold hinge
  • Forensics tamper-proof hardware and a built-in padlockable latch prohibits unauthorized access and maintains the chain of custody
  • High speed USB and other RF filtered I/O's are available for your custom application

The STE2200F2 is designed specifically for securing and isolating cell phones and other small communications devices on-site for transport to your lab for evaluation and interrogation. Its small size also makes it perfect for compact yet secured storage of one or more wireless devices.

The moment the device is secured into the STE2200F2 it is isolated from the carrier's network, regardless of the carrier or the frequency bands in use by them. The device is also fully isolated from WiFi signal sources, including both 2.4 GHz and 5.0 GHz and therefore covering any combination of 802.11a/b/g/n/ac protocols. Once secured from outside signals, the device is protected from remote kill commands, remote lock commands, remote self-destruct commands, as well as being protected from GPS and location tracking.

If a device is collected on site with our STE2200F2, when you return to your lab, it can easily be transferred into one of our larger forensics enclosures for a full forensics evaluation and interrogation. And while the STE2200F2 is primarily utilized for collection, our high speed USB2.0 Interface can be easily installed giving you direct connection to the device for both data access and battery charging while maintaining >80 dB isolation. This can be particularly useful to maintain device power to eliminate the threat of a power-down lockout or self-destruct script being executed.

While compact in size, the STE2200F2 is constructed to the same precision-machined tolerances as our larger models in order to assure an exceptionally well shielded environment. Heavy duty, rugged .090" and .125" aluminum is used throughout the enclosure. New for 2014 it also features our custom engineered GEN-2 RF gaskets. With over a year in the R&D lab, these new gaskets provide a previously unheard of and flawless RF seal while being immune to the fixed compression set of typical stainless gaskets. Likewise, also new for 2014 the STE2200F2 also features our GEN-2 RF absorbent and reflective foam lining. This foam was designed from the ground up, to our demanding specifications to provide maximum performance over all operating frequencies and bands. What does all this mean? A total isolation effectiveness greater than 110 dB, and the assurance that you're confiscated devices WILL be isolated from any network carrier out there!

Tamper-proof hardware and a padlockable latch prohibits unauthorized access and maintains the chain of custody for the devices collected. When opened, the steady-hold hinge maintains the cover position where it was left, making it easy to load, unload, and latch the enclosure. And don't be confused by its small size, once on-site, nearly two dozen smart phones can fit inside one single STE2200F2! That's something the average pouch can't say!

If you or your department is looking for an economical and compact highly isolated first tier collection or storage system, the STE2200F2 is your best choice. Thousands of departments can't be wrong!
