NEW Sirio Monsoon 10-11m (26-30MHz) Base Antenna

The Sirio Monsoon is a new 10-11 meter base station antenna with a bottom tuning system, tunable between 26-30 MHz. Big coil made of a Ø 6 mm aluminium wire, AWG-3. Similar strong PC insulator with reinforcement fins as the New Tornado 2024.

High power handling 1000 Watts (CW) continuous and 3000 Watts (CW) short time. Including the well-known top anti-static cage. Low radiation angle for excellent DX.

Features

• Frequency: 26-30MHz Tunable
• Power: 1000W CW
• Gain: 1.2 dBd, 3.35 dBi
• Bandwidth SWR ≤ 2: ≥ 1400kHz @ 27.2MHz
• Height (approx):7180 mm
• Radial lenght : 2000mm
• Weight (approx): 3Kg
• Connection: SO239
• Made of aluminium alloy 6063 T-832
• Base station antenna Tunable by acting on the bottom coil
• Low radiation angle for excellent DX

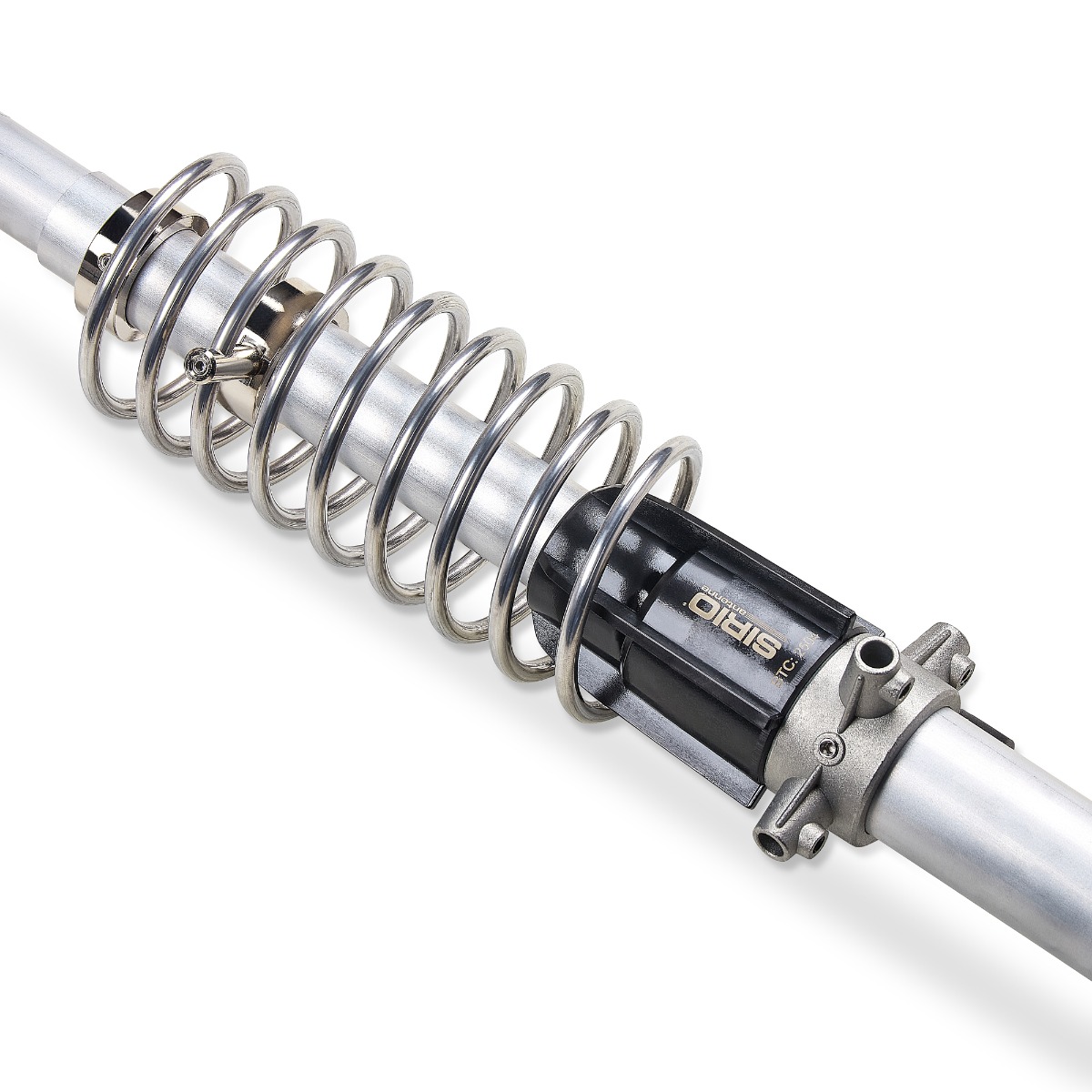

• Big coil made of aluminium wire Ø6mm AWG-3
• Omnidirectional
• Plastic jointing sleeves
• High power handling capability
• Top anti static cage
• Strong PC insulator with reinforcement fins
