USED Elad fdm Duo & Exito-232

Condition:

A Good example

Has a few minor age related marks

Whats included:

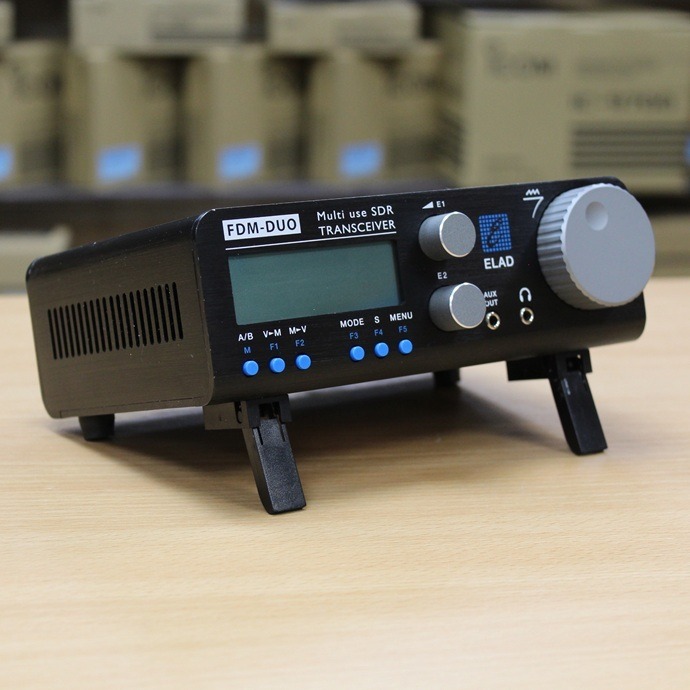

Elad FDM Duo Red 5 Watt SDR Transceiver, SDR transceiver with 5 W output that can operate as a stand-alone without a PC! The small transceiver is equipped with the latest SDR technology: A fast analog-digital-converter samples the received HF directly into digital signals and a downstream DSP module provides for filtering and processing. Another ARM processor handles the signals of the control unit. One highlight of the FDM-DUO is the possibility to use it standalone without a computer also. Then, this transceiver is a perfect companion for the QRP fan, so that you can have a modern SDR with you even on holidays. The controls are very easy to use for a portable QRP transceiver. In addition to a big VFO knob, there are two smaller knobs for volume and filter centre/width (amongst others). Six buttons below the well-readable LC display access the most important functions directly. Less frequently used settings are available via the menu system. Connected to a PC, FDM-DUO is a very modern SDR receiver and transmitter with capabilities which are usually available in very large radios only. The device receives from 10 kHz to 54 MHz. A 16-bit ADC with a 122 MHz sampling rate is built-in. Receive modes are SSB, CW, AM (incl. Sync-AM), FM, WFM (incl. Stereo and RDS!), RTTY and DRM. The transmitter has 5 W output power, alternatively an HF output jack with 0 dBm output. Together with a computer, the possibilities for the FDM-DUO are extended quite considerably of course. Three(!) USB 2.0 interfaces offer a wide range of possibilities.

One interface works as a CAT controller, another one provides digital I/Q data for the waterfall diagram, and the third USB port serves as an external sound card for the PC! This way the FDM-DUO can be used for digital modes such as RTTY, PSK31 etc. By distributing these functions to three separate USB interfaces the handling for the user is made much easier, in most cases no additional USB drivers are required. The FDM-DUO has two configurable antenna jacks: RX/TX on the same jack, or RX and TX on one jack each. Specifications: Frequency Range RX9 kHz - 52 MHz RX direct sampling Frequency Range Txonly amateur bands 160 to 6m Output power5 W on amateur bands or 0 dBm HF-Output Connectors2x antenna jacks PL (RX/TX or separate RX/TX) Exciter Output0dBm, 100 kHz - 54 MHz Frequency OscillatorTCXO 10MHz Stand-alone modes (w/o PC)CW, USB, LSB, AM, FM Spectrum bandwidth192, 384, 1536, 3072, 6144 kHz CATUSB interface with FTDI controller Weight1200g Size incl. controls180 × 155 × 70 mm.
