WOUXUN KG-UV8G 2/4m Handheld Transceiver

SKU :
10-906
Category:
Amateur
Manufacturer:
Wouxun

WOUXUN KG-UV8G 2/4m Handheld Transceiver

SKU :
10-906

WOUXUN KG-UV8G 2/4m Handheld Transceiver

In stock
Out of stock
SKU
10-906
£129.95
About WOUXUN KG-UV8G 2/4m Handheld Transceiver

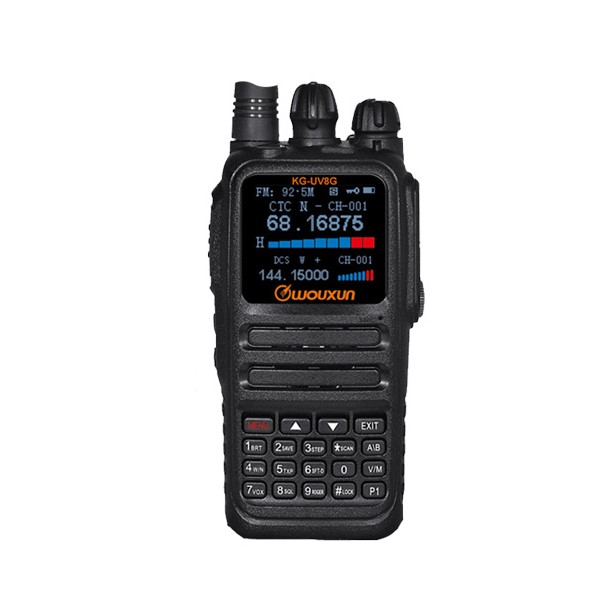

Wouxun KG-UV8G 2/4M Colour Screen Two Way Handheld Transceiver.

FEATURES:
  • Memory Channels 999
  • QT/DQT Encoding / Decoding , QT / DQT Scan
  • VOX and SOS Funcion
  • Multi Definition for Sidekeys
  • Incoming Message Display Caller ID display
  • DTMF Encoding and Decoding
  • All Calls , Group Calls And Selective Calls
  • Dual Display ,Two Independent Operation System
  • Large Color Screen
  • Duplex Work Mode and Dual Receiving
  • Cross Band Repeater
  • Power on Message Editable
  • Wide / Narrow Bandwidth Selection (25KHZ / 12.5KHz)
  • Chinese and English Voice Guide
  • Chinese and English Screen Display
  • Bright Flashlight illumination
  • Reverse Frequency
  • Single-Tone Pulse Frequency : 1000 / 1450 / 1750 / 2100Hz
  • Stopwatch
  • Remote Alarm
  • Priority Scan Function
  • Voice Compander
  • TECHNICAL SPECIFICATIONS:

    Integration:
  • Frequency Range: Suitable for Different Countries or Areas, 66-88MHz and 136-174MHz
  • Step: 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
  • Channel Number: 999
  • Work Mode: F2D / F3E
  • Operating Temperature: -20℃~+40℃
  • Voltage: 7.4 VDC
  • Antenna Impedance: 50Ω
  • Receiver:
  • Adjacent Channel Selectivity; Wide ≤70dB, Narrow ≤60dB
  • Inter Modulation: Wide ≤65dB, Narrow ≤60dB
  • Spurious Response: Wide ≤70dB, Narrow ≤70dB
  • Audio Response: Wide +1~-3dB(0.3~3KHz), Narrow +1~-3dB(0.3~3KHz)
  • Signal to Noise Ratio: Wide ≥45dB, Narrow ≥40dB
  • Audio Distortion: ≤5%
  • Audio Power: ≤500mW
  • Sensitivity UHF/VHF:0.25µV(12dB SINAD)
  • Transmitter:
  • Adjacent Channel Selectivity: Wide ≥70dB, Narrow ≥60dB
  • Type of Modulation: Wide 16K F3E, Narrow 11K F3E
  • Spurious: Wide ≥60dB, Narrow ≥60dB
  • Audio Response: Wide +1~-3dB(0.3~3KHz), Narrow +1~-3dB(0.3~3KHz)
  • Max Frequency Deviation: Wide ±5KHz, Narrow ±2.5KHz
  • Frequency Stability ±2.5PPM
  • Audio Distortion ≤5%
  • Output Power UHF: 8W / 5W / 1W , VHF: 10W / 7W / 1W
  • DELIVERY

    We aim to dispatch all parcels within 24hrs. We are normally able to dispatch parcels SAME DAY where orders are received before 2.00pm Monday to Friday.



    Whilst we try our best to ship same day, we cannot guarantee delivery time. You will however receive tracking details as soon as your order has been processed.



    Please note that we do not process orders over the weekend, so orders placed after 2pm on Friday will not ship until Monday.



    Please allow an extra processing day for international orders to enable us to complete export/import custom clearance declarations.
