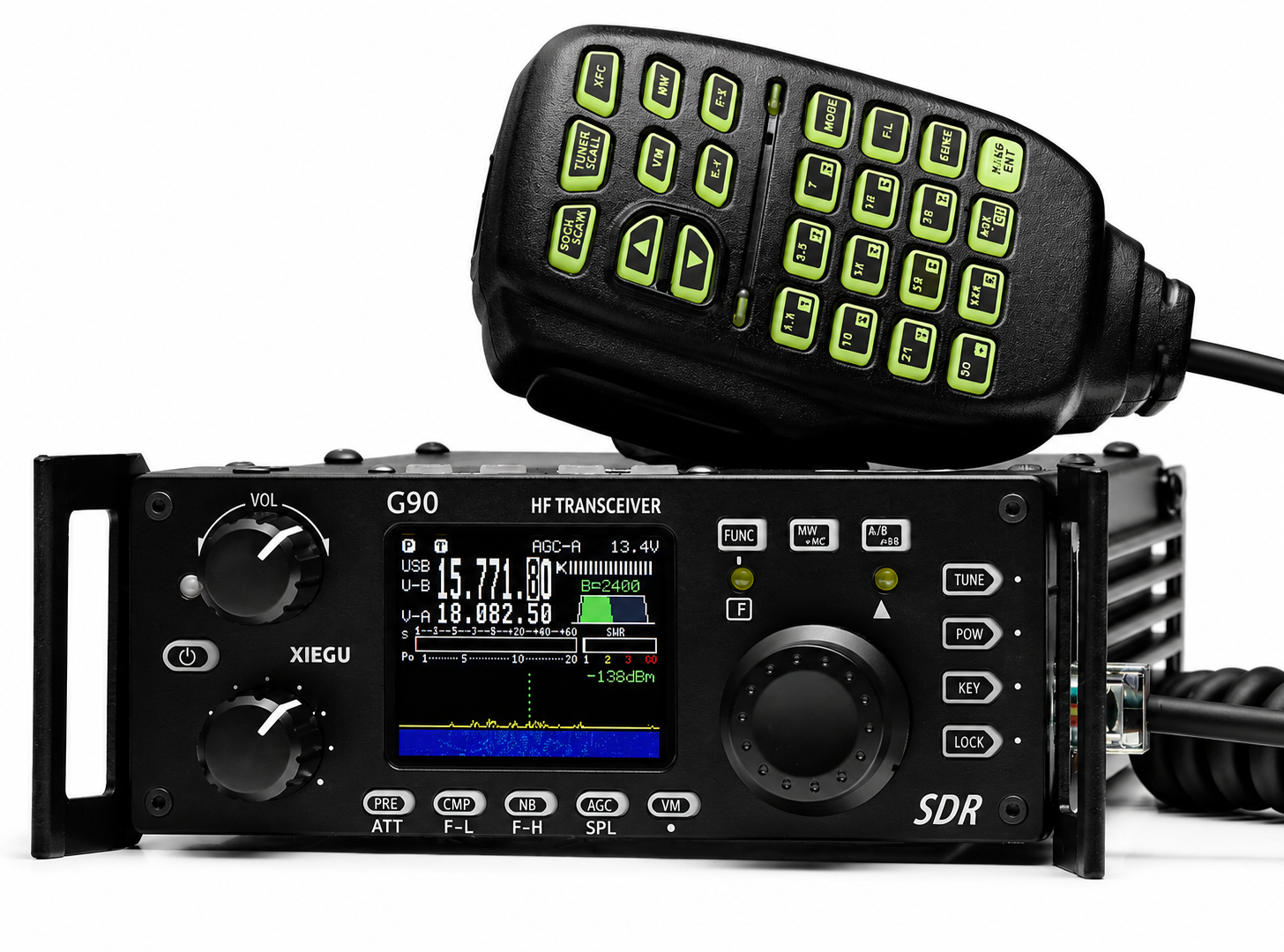

Xiegu G90 - Portable HF SDR Transceiver

Xiegu G90 is a portable 20W HF amateur radio transceiver with an SDR architecture and built-in automatic antenna tuner. The display unit can be separated from the radio unit for flexible installation options. The baseband I/Q output allows the G90 to interface with external devices like a PC or the Xiegu optional panadapter.

Features:

• High performance front end narrowband ESC preselector
• Frequency range of 0.5~30MHz, SSB/CW/AM
• 1.8-inch high brightness colour TFT LCD screen
• ±24k bandwidth spectrum display with waterfall
• Software defined narrowband filter (CW mode: 300Hz)
• Detachable Front Panel/Display Unit
• Up to 20W of RF power
• Built-in wide range automatic antenna tuner
• I/Q output for interfacing with a PC or XDT1 panadapter

General Specifications:

• Operating Voltage Range: 12 ~ 15V DC
• Operating Temperature Range: 0°C ~ 55°C
• Frequency Stability: ±2ppm (after 30 minutes of power on)
• Size: 120mm x 45mm 210 mm (without protrusions, head unit combination status)
• Weight: 1kg (approx.)

Receiver Specifications:

• RX Frequency Range: 0.5MHz to 30MHz
• Modes: SSB/CW/AM
• RX Sensitivity: better than 0.25uV @12dB Sinad (PRE: ON) Machine dynamic range: 90dB
• Adjacent Channel Suppression: 60dB
• Audio Output Power: 0.5W@ 4Ω
• Standby Current: 750mA @ Max

Receiver Specifications:

• TX Frequency Range: all amateur bands 1.8 to 30 MHz
• Modes: SSB/CW/AM
• RF Output Power: 20W
• Spurious Suppression: ≥50dB
• Carrier Suppression: ≥50dB
• Sideband Suppression: ≥50dB
• Transmit Working Current: 6A @ Max

Antenna Tuner Specifications:

• Initial Tuning Time: ≤12s
• Re-entry Tuning Time: ≤2s

Included in Box:

• Xiegu G90 Transceiver
• Multi-function Microphone
• USB CAT and Firmware Cable
• DC Power Cable with fuse
• DB-9 remote head cable
• Operation Manual
• Warranty Card
• Quality control card
• Hex key
• Front extension handles
• Rear extension handles
