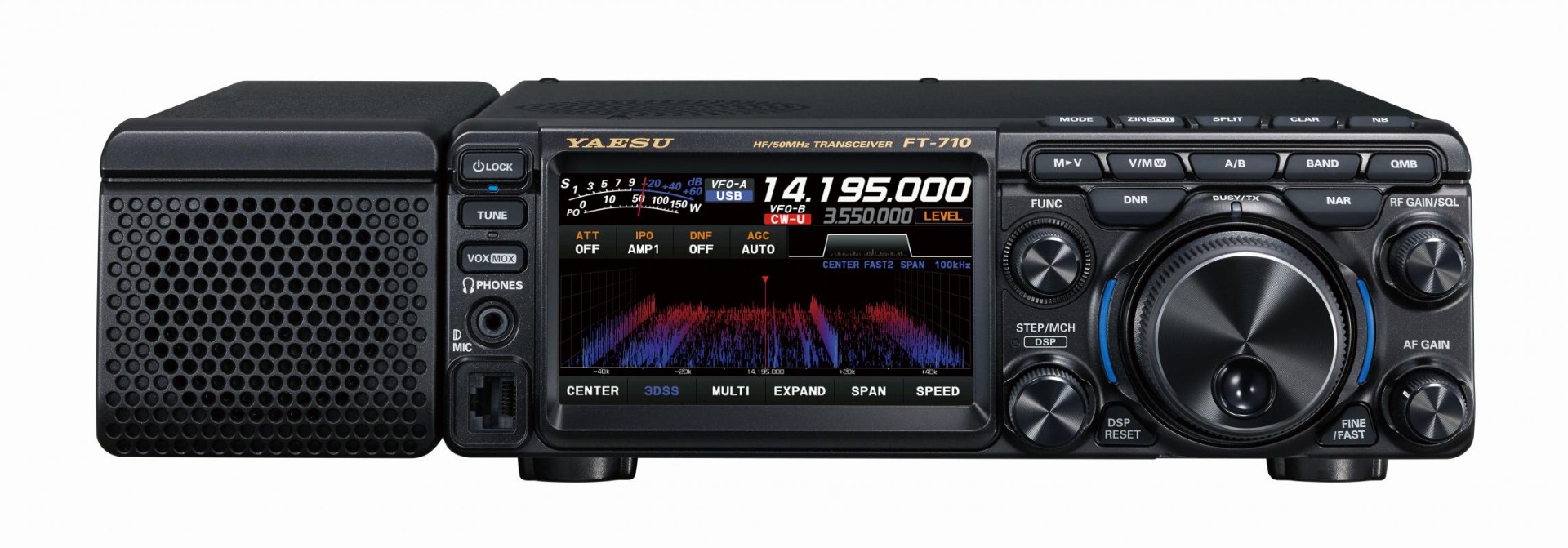

About Yaesu FT-710 AESS SDR HF Transceiver

The FT-710 AESS is a compact design yet provides 100W output, utilizing the advanced digital RF technology introduced in the FTDX101 and FTDX10 series.

Features:

  • YAESU Unmatched SDR technology emphasizes the Receiving Performance
  • Band Pass Filters dedicated for the amateur bands to eliminate out-of-band unwanted signals
  • RF Front-End design with the 250MHz HRDDS (High Resolution Direct Digital Synthesizer) enables Phenomenal Multi-Signal Receiving Characteristics
  • QRM rejection by the dual core 32-bit high speed floating decimal point DSP for SHIFT/ WIDTH/ NOTCH/CONTOUR/ APF (Audio Peak Filter)/ DNR (Digital Noise Reduction)/ NB (Noise Blanker) and 3-Stage Parametric Equalizer
  • High Resolution 4.3-inch TFT Colour Touch Panel Display
  • 3DSS (3-Dimensional Spectrum Stream)
  • VMI LED (VFO Mode Indicator) placed around the VFO dial shows the current operating mode (VFO-A, VFOB, Memory Mode and Clarifier/Split Operation)
  • “PRESET” Mode Function most suitable for FT8 Operation
  • AESS: Acoustic Enhanced Speaker System with SP-40 creates the high-fidelity audio output
  • External Display Connection Terminal (DVI-D)
  • Built-in High Speed Automatic Antenna Tuner with 100 channel memory
  • Support the FC-40 Auto Antenna Tuner
  • SD Memory Card can be used to save the communication record, transceiver setting, the memory contents, screen capture images, and to update the firmware
  • Two (2) USB Ports (Type-A and Type-B)
  • Other essential features such as CW ZIN and SPOT, IPO (Intercept Point Optimization), and Remote Operation with Network Remote Control System to name a few

Technical Specifications:

  • TX Frequency Range: 1.8MHz band – 50MHz band (Amateur bands only); 70MHz – 70.5MHz (UK Amateur bands only)
  • RX Frequency Range: 30KHz – 75MHz (Operating); 1.8MHz – 29.699999MHz (Specified performance, Amateur bands only); 50MHz – 53.999999MHz (Specified performance, Amateur bands only); 70MHz – 70.499999MHz (Specified performance, UK Amateur bands only)
  • Emission Modes: A1A(CW), A3E(AM), J3E(LSB/USB), F3E(FM)
  • Supply Voltage: DC13.8V ±15%
  • Power Output: 5 - 100W (5 – 25W AM Carrier)
  • Dimensions (W x H x D): 9.4” x 3.1” x 9.7” (239 x 80 x 247mm)
  • Weight (Approx.): 9.92lbs (4.5kg)
