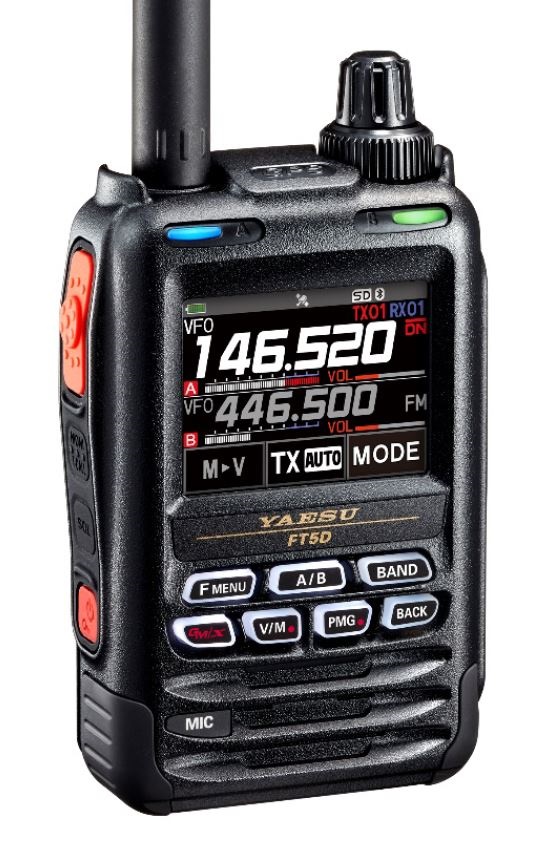

FT5DE - Dual Band Handheld Transceiver

Yaesu FT-5DE - 5W C4FM/FM 144/430MHz Dual Band Digital Transceiver.

The FT5DR provides reliable 5W RF power output and achieves loud 1W audio power that has been tuned for quality audio. Real Dual Band Operations (V+V, U+U, V+U, U+V) are available with two independent receivers.

A high-resolution display highlights the frequency of the operational band. The color of the operating band frequency can be selected from white, blue or red. Three (3) touch panel keys and seven (7) operation keys below the display offer intuitive operability.

Advanced Features

• Wireless hands-free operation using the optional Bluetooth® headset (SSM-BT10)
• VOX function
• Memory Auto Grouping (MAG)
• VFO Band Skip Function
• Wide-range RX coverage with continuous reception from 0.5MHz–999.99MHz (A Band) and 108MHz–580MHz (B Band)
• Built-in high-sensitivity 66 channel GPS receiver
• 1200/9600bps APRS Data modem

Supplied Accessories

• Dual Band Helical Antenna
• 7.2v 2200mAh Li-ion Rechargable Battery Pack (SBR-14LI)
• UK 3-Pin Mains Charger
• Belt Clip
• Operating Manual
• USB Cable

Specification

• Frequency Ranges - A(Main) Band RX: 0.5 - 1.8MHz (AM Broadcast) 1.8 - 30MHz (SW Band) 30 - 76MHz 76 - 108MHz (FM Broadcast) 108 - 137MHz (Air Band) 137 - 174MHz (144MHz HAM) 174 - 222MHz 222 - 420MHz 420 - 470MHz (430MHz HAM) 470 - 800MHz 800 - 999.995MHz
• Frequency Ranges - B(Sub) Band RX: 108 - 137MHz (Air Band) 137 - 174MHz (144MHz HAM) 174 - 222MHz 222 - 420MHz 420 - 470MHz (430MHz HAM) 470 - 580MHz
• Frequency Ranges - TX: 144 - 146MHz (C4FM/FM) 430 - 440MHz (C4FM/FM)
• Circuit Type: NFM/AM: Double-Conversion Superheterodyne FM/AM Radio: Direct-Conversion Modulation Type: F1D, F2D, F3E, F7W
• RF Power Output: 5W /2.5W /1W /0.3W
• Size: 62x100x4mm
• Weight: 282g
